ARCO
ARCO Pulleys
ARCO Pulleys
Regular price
$30.98 USD
Regular price
Sale price
$30.98 USD
Unit price
/
per
Couldn't load pickup availability
Pulley Type | OD (mm) | Bore (mm) | Grooves | Hub to Groove Center(s) (mm) | Notes |
---|---|---|---|---|---|
6G K Pulley | 49 | 17 | 6-rib | — | Standard pulley |

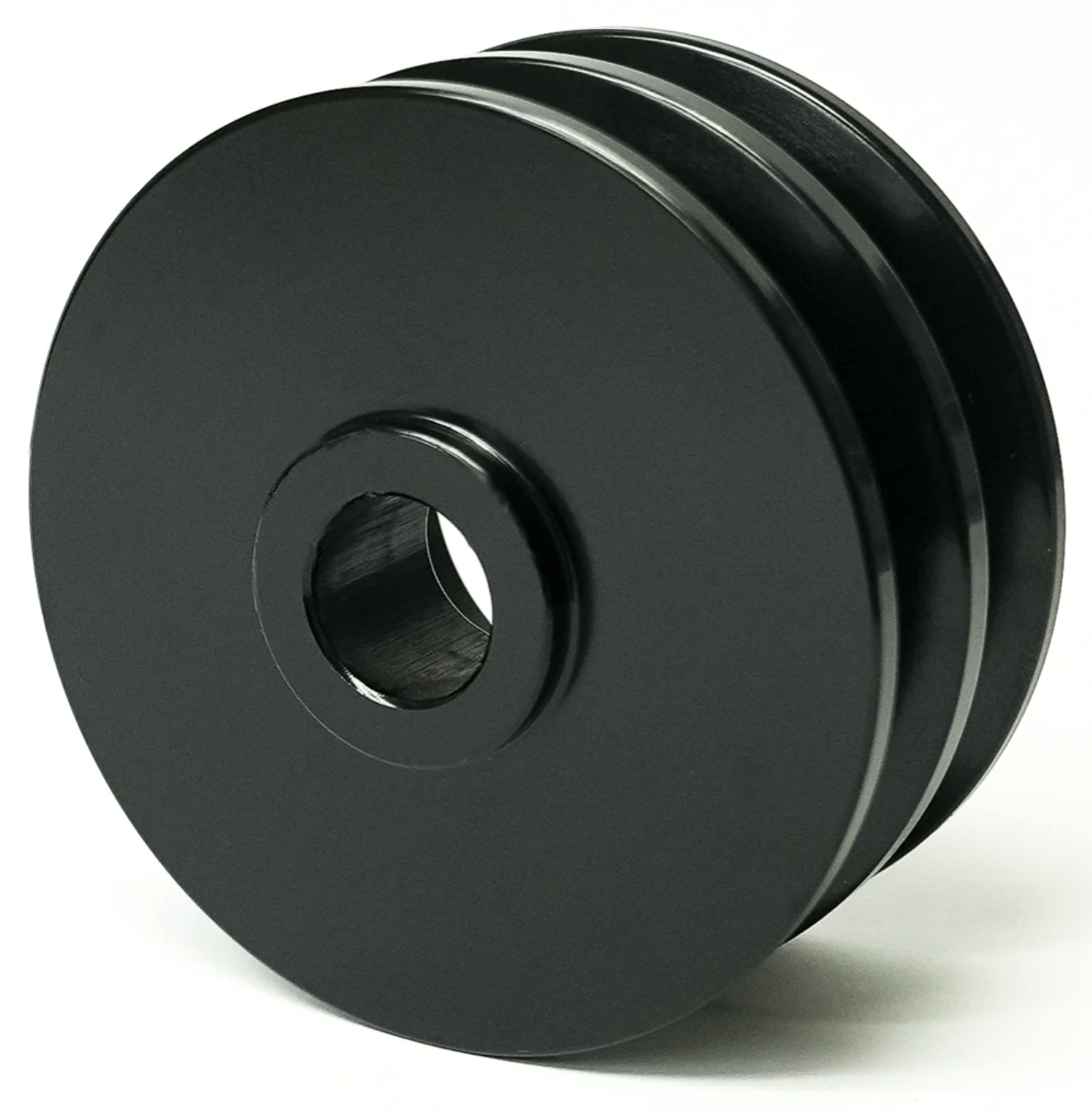

DV V-Belt Pulley | 81 | 17 | 2 (3/8" or 1/2") | 13.5 (1st), 30.5 (2nd) | Larger diameter dual-groove V-belt |
DV V-Belt Pulley | 71 | 17 | 2 (3/8" or 1/2") | 22 (1st), 41 (2nd) | More offset dual-groove V-belt |
6G K Pulley | 60 | 17 | 6-rib | 5.6 (1st groove) | Slightly larger than standard |
6G K Pulley | 64 | 17 | 6-rib | 8.6 (1st groove) | Mid-size 6-rib |
8G K Pulley | 65 | 17 | 8-rib | 8 (1st groove) | Higher output applications |
10G J Pulley | 53 | 17 | 10-rib (J) | — | Compact, high-rib density |
The outer diameter (OD) of a pulley directly affects the rotational speed (RPM) of the alternator or accessory it drives. Here's how it works:
Basic Relationship:
- Larger OD pulley → slower alternator RPM
- Smaller OD pulley → faster alternator RPM
This is because the pulley acts as a gear: the engine crankshaft turns the belt, and the belt turns the alternator pulley. The ratio between the crankshaft pulley and the alternator pulley determines how fast the alternator spins.
Example:
If your engine crank pulley is 150 mm and your alternator pulley is:
- 50 mm → alternator spins 3× faster than the crank
- 75 mm → alternator spins 2× faster
⚠️ Why It Matters:
- Too small a pulley: Alternator may overspeed at high engine RPMs, risking damage.
- Too large a pulley: Alternator may undercharge at idle or low RPMs.
Here’s how different alternator pulley outer diameters (ODs) affect alternator RPM, assuming a crankshaft pulley OD of 150 mm and engine speed of 3000 RPM:
Alternator Pulley OD (mm) | Alternator RPM |
---|---|
49 | 9184 |
60 | 7500 |
64 | 7031 |
65 | 6923 |
71 | 6338 |
81 | 5556 |
Pulley Type | Belt Type | Groove Shape | Common Use |
---|---|---|---|
DV | Dual V-belts | Deep V | Marine, industrial, legacy systems |
K | Serpentine (3.56 mm rib spacing) | Multi-rib | Automotive, marine, high-load |
J | Serpentine (2.34 mm rib spacing) | Narrow multi-rib |
